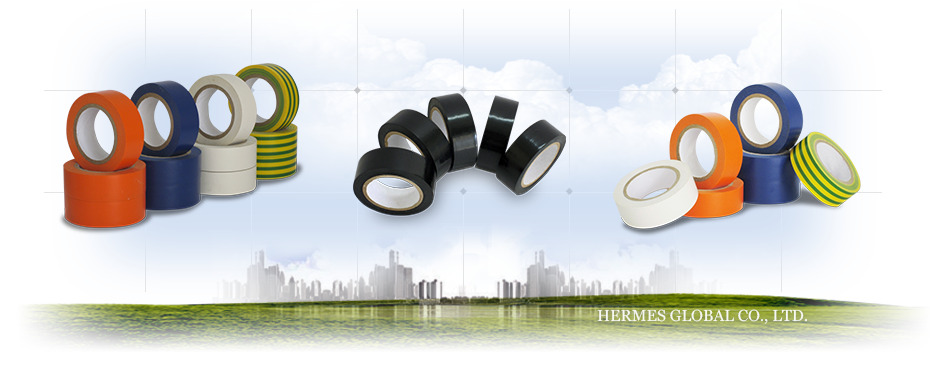

PVC Electric Insulating Tape > Products

PVC electric insulating tape is vinyl carrier coated with natural rubber adhesive. It is commonly used to connect separated electrical wires for insulating purposes. Excellent properties in resisting high voltage, tolerating a wide temperature and flame retardant.





Good workability
Good flexibility and adhesion for wide temperature applications
Good sealing properties
Flame retardant
Good moisture and chemical resistance







Insulate electrical wires as well as other materials that conduct electricity
General wrapping electric wires and cables
General wrapping electric wires, automotive wire harness and cable.
Colour coding and insulation of electrical cabling







Item No. Thickness Flame Retardant Adhesion Elongation Tensile strength Temperature resistance Voltage
311 0.11mm - 1.0 N/cm 150% 13N/cm 80 ℃ 600
313 0.13mm - 1.0 N/cm 150% 15N/cm 80 ℃ 600
315 0.15mm - 1.0 N/cm 150% 18N/cm 80 ℃ 600
318 0.18mm - 1.0 N/cm 150% 25N/cm 80 ℃ 600
321F 0.11mm Flame Retardant 1.0 N/cm 150% 13N/cm 80 ℃ 600
323F 0.13mm Flame Retardant 1.0 N/cm 150% 15N/cm 80 ℃ 600
325F 0.15mm Flame Retardant 1.0 N/cm 150% 18N/cm 80 ℃ 600
328F 0.18mm Flame Retardant 1.0 N/cm 150% 25N/cm 80 ℃ 600



*color: black, red, yellow, blue, green, white, grey, brown, orange, red/white, yellow/black, yellow/green
